| 壁厚 | 3~4.5mm |
|---|---|
| 材質 | 合成纖維橡膠 |
| 產地 | 德國 |
| 長度 | 40m |
| 公稱外徑 | 19~39mm |
| 顏色 | 黃黑相間 |
| 用途 | 工業、建筑、市政、園藝等輸水系統 |
| 產商/產地 | 德國 |
| 品牌 | Continental |
| 型號 | 01121124系列 |

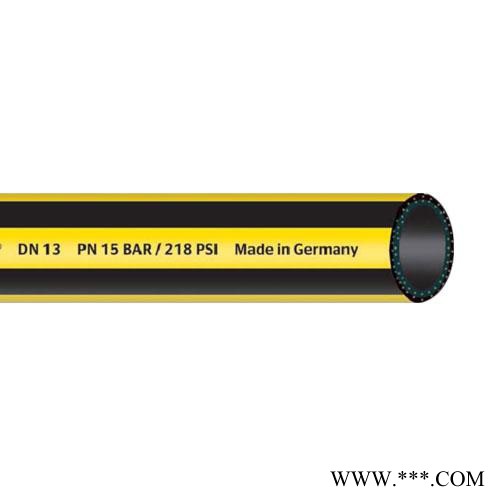

THERMIDOR® 是一款通用水管。適用于工業，建筑業移動及靜止管線以及農業，園藝，市政，車輛清洗等等。軟管非常柔軟，易于操作。工作壓力：10~15 巴
爆破壓力：30~45 巴
溫度范圍：-40℃~+100℃，熱水短期可至+120℃
內襯：黑色光滑EPDM
外膠：黑色光滑EDPM，耐臭氧，耐氣候，UV及耐磨
加強層：合成纖維
The THERMIDOR® water hose is a product for universal operation. It is designed for safe operation in mobile or stationary hose lines in industry and construction as well as farming, landscape gardening, municipal facilities, car pools etc. The hose is highly flexible, robust and easy to handle.
Black, non porous and smooth EPDM lining
Reinforcements: synthetic fibres
Working pressure up to 15 bar / 218 psi
Black, smooth EPDM-cover, resistant to ozone, weather and UV
Temperature range from -40°C up to +100°C / -40°F up to +212°F
Hot water short term up to +120°C / +248°F
Up to DN 25 release agent- and fat-free, free from any product harmful to lacquer
| 內徑毫米 | 壁厚毫米 | 外徑毫米 | 公稱壓力 巴 | 長度 米 | 產品編號 |
| 13 | 3.0 | 19 | 15 | 50 | 0112 112401 |
| 15 | 3.0 | 21 | 15 | 50 | 0112 112402 |
| 19 | 3.5 | 26 | 15 | 50 | 0112 112403 |
| 25 | 4.0 | 33 | 15 | 50 | 0112 112404 |
| 30 | 4.5 | 39 | 10 | 40 | 0112 112405 |
