材質 | 丙綸 |
---|---|
產地 | 山東 |
規格 | 200g-1000g |
厚度 | 1.9-7.2 |
抗壓強度 | 強 |
形狀 | 卷板 |
用途 | 公路、鐵路(高鐵)、機場、海港、垃圾填埋場、尾礦壩、粉煤灰填埋場、灰壩池、人造濕地、江河湖海治理、水 |
主要用途 | 公路、鐵路(高鐵)、機場、海港、垃圾填埋場、尾礦壩、粉煤灰填埋場、灰壩池、人造濕地、江河湖海治理、水 |
品牌 | 文豐世通 |
型號 | 齊全 |
加工定制 | 是 |
成分及含量 | 丙綸 |
產品介紹:
高強聚丙烯長絲紡粘針刺土工布
High strength PP filament spunbond needle punched nonwoven geotextile
(1)聚丙烯密度較小,僅為0.91g/m3(滌綸為1.38g/m3),因此聚丙烯土工布與聚酯士工布相比,在相同的強力下,具有更大的覆蓋面積。
(2)聚丙烯的特殊結構使其具有優良的耐酸耐堿性能,特別是耐堿性能優于聚酯,在土質酸堿性較強的地下進行防護、加強、防水、防等工程中使用時其效果好于聚酯。
(3丙烯纖維表面摩擦系數較小,纖維之間的摩擦力小,而且耐磨性好,抗震動摩擦性能遠好于滌綸。
(4)丙烯具有良好的疏水性,不吸水,在給排水工程中應用優于聚酯。
(5丙烯纖維針刺士工布比相同克重的聚酯針刺土工布強力高,而且縱橫向強力相等。
應用范圍
聚丙烯紡粘針刺土工布具有優越的物理性能和良好的化學穩定性,因此,它適用于任何巖士工程,特別是有酸堿性的環境。如:公路、鐵路(高鐵)、機場、海港、垃圾填埋場、尾礦壩、粉煤灰填埋場、灰壩池、人造濕地、江河湖海治理、水庫、水梁、填海造地、污水治理等工程。
(1) The polypropylene has a low density of only 0.91 g/m3 (polyester is 1.38 g/m3), so the polypropylene geotextile has a larger coverage area under the same strength as the polyester fabric.
(2) The special structure of polypropylene makes it have excellent acid and alkali resistance, especially the alkali resistance is better than polyester. It is effective when used in the protection, strengthening, waterproofing and corrosion engineering of underground soil with strong acidity and alkalinity than polyester.
(3) The surface friction coefficient of polypropylene fiber is small, the friction between fibers is small, and the wear resistance is good, and the vibration friction performance is much better than polyester.
(4) Polypropylene has good hydrophobicity, no water absorption, and is superior to polyester in water supply and drainage engineering.
(5) Acrylic fiber needle-punched fabric is stronger than the same weight of polyester needle-punched geotextile, and the vertical and horizontal strength is equal.
Application:

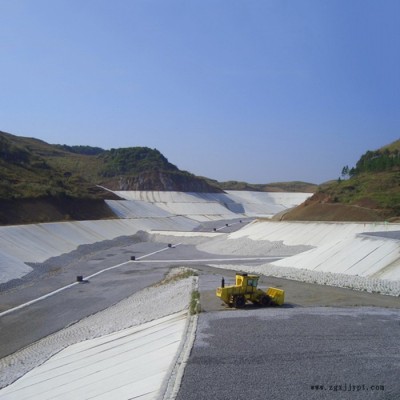

In virtue of the superior physical properties and good chemical stability of PP geotextile N can be applied to any geotechnical engineering environment, especially the environment with acid and alkaline, such as highway railway(HSR) airport, seaport, landfill, tailings dam, fly ash landflll, ash dam pool, artificial wetlands, rivers and lakes governance,reservoirs.canals. land reclamation, sewage treatment works etc.
項目Item | 規格Specification | ||||||
單位面積質量GSM(g/m2) | 200 | 400 | 500 | 600 | 700 | 800 | 1000 |
抗拉強度縱橫向 Tensile strength(KN/m) | 19 | 35 | 38 | 45 | 46 | 48 | 50 |
伸長率 Elongation(%) | 40-100 | ||||||
CBR頂破強力 CBR bursting strength(KN) | 2.5 | 5.0 | 5.87 | 6.9 | 7.5 | 8.43 | 9.0 |
梯形撕破強力縱橫向 Trapezoidal Tear(KN) | 0.48 | 0.8 | 0.92 | 1.23 | 1.30 | 1.48 | 1.6 |
厚度(2Kpa)Thickness(mm) | 1.9 | 3.2 | 4.0 | 4.5 | 5.3 | 6.0 | 7.2 |
握持強度 Grip strength(KN) | 0.81 | 1.65 | 2.15 | 2.90 | 3.10 | 3.70 | 3.85 |
握持延伸率 Holding elongation (%) | 50-100 | ||||||
刺破強度 Puncture resistance(KN) | 0.40 | 0.80 | 0.85 | 1.00 | 1.15 | 1.30 | 1.40 |
落錐穿透孔徑(mm) Drop cone penetration aperture | 23 | 14 | 9 | 8 | 7 | 6 | 5.5 |
等效孔徑O90(mm) Equivalent aperture | 0.10 | 0.08 | 0.08 | 0.08 | 0.07 | 0.07 | 0.06 |
垂直透水流量(50mm水柱)Vertical flow rate(L/m2/s) | 85 |
|
