| 材質 | HDPE |
|---|---|
| 產地 | 山東 |
| 規格 | 寬2-6m，長50-100m，或根據用用要求 |
| 厚度 | 0.2-1.0 |
| 類型 | 復合土工膜 |
| 生產工藝 | 吹塑 |
| 特性 | 柔韌性好 |
| 用途 | 廣泛應用于水利堤壩、交通隧道、筑路、機場排水、房屋、環保等許多領域，在工程中主要起到防滲、防護、加固 |
| 品牌 | 文豐世通 |
| 延展率 | 30-100 |
產品介紹：

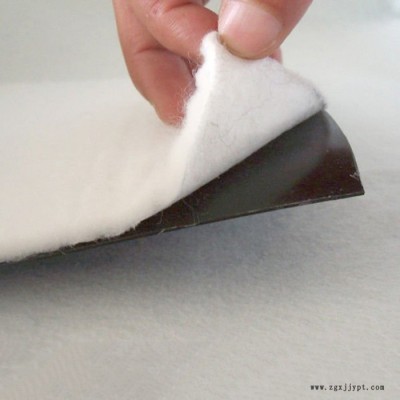

復合土工膜
Composite geomembrane
產品規格
1. 一布一膜，基布：100-1000g/m2,膜厚：0.1-1.5mm
2. 兩布一膜：基布：80-600g/m2,膜厚：0.2-1.5mm
3. 一布兩膜: 基布：100-1000g/m2,膜厚：0.1-0.8mm
4. 多布多膜：基布：100-1000g/m2,膜厚：0.1-0.8mm
性能特點：柔韌性好，除具有土工布隔離、強度高、柔韌性好，排水、加筋、防護、耐老化等作用外，還具有封閉（防滲）作用。
用途作用：廣泛應用于水利堤壩、交通隧道、筑路、機場排水、房屋、環保等許多領域，在工程中主要起到防滲、防護、加固作用。
包裝規格：寬2-6m，長50-100m，或根據用用要求。
Specification:
1.One piece of geotextile and one piece of membrane;Weight of base geotextile: 100-1000g/m2;
Thickness of geomembrane: 0.1-1.5mm.
2.Two piece of geotextiles and one piece of membrane;Weight of base geotextile: 80-600g/m2
Thickness of geomembrane: 0.2-1.5mm.
3.One piece of geotextile and two pieces of membranes;Weight of base geotextile: 100-1000g/m2;Thickness of geomembrane: 0.1-0.8mm.
4. Multi-layers:Weight of base geotextile: 100-1000g/m2;Thickness of geomembrane: 0.1-0.8mm.
Properties:
Flexibility is good, except of a geotextile’s isolation, drainage, reinforcement, protective functions, it is also impermeable.
Usage:
Widely used in dam, traffic tunnel, road, airport, drainage, housing, environmental protection and many other fields for waterproof protection, reinforcement etc.
Size of package:2-6m width, length 50-100m(or at request)
短纖針刺非織造復合土工膜技術指標(GB/T17642-1998）
| 項目Item | 指標Specification | ||||||||
| 標稱斷裂強度Nominal breaking Strength (KN/m) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | |
| 1 | 幅寬偏差 Width Variation% | -1.0 | |||||||
| 2 | 縱橫向斷裂強度Breaking Strength KN/m≥ | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 |
| 3 | 縱橫向斷裂伸長率Elongation At Break (MD/CD)% | 30-100 | |||||||
| 4 | CBR頂破強力 CBR Mullen Burst Strength KN≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 |
| 5 | 耐靜水壓Hydraulic pressure /Mpa | As table 2 | |||||||
| 6 | 垂直滲透系數 Vertical Permeability Coefficient cm/s | According to request | |||||||
| 7 | 撕破強力 Tear Strength KN≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 |
| 8 | 剝離強度Peel strength(N/cm) | 6 | |||||||
Technical specification of composite geomembrane
