| 材質 | PET PI |
|---|---|
| 工藝 | 壓延工藝 |
| 規格 | 可定制 |
| 顏色 | 黑色 |
| 用途 | 用于**、電磁屏蔽、電熱等產品 |
| 品牌 | HAOUGER |
| 型號 | JH6000 |
| 加工定制 | 是 |
| 包裝層次 | 內層包裝、外層包裝 |
>>>單面導通碳膜系列產品選用納米級超導碳黑、碳納米管及石墨烯為原料，采用特殊壓合工藝成膜后再與基材進行貼合。以上工藝所制成的復合碳膜，面阻均勻穩定，材質整體均一耐彎折，通過后期客戶的封裝工藝，可以實現耐酸、耐油、耐熱、耐寒、阻燃及抗氧化，使用壽命可達20年以上。不導電面具有良好的印刷性能，可根據需要印刷各種標示圖案，滿足個性化的LOGO需求。

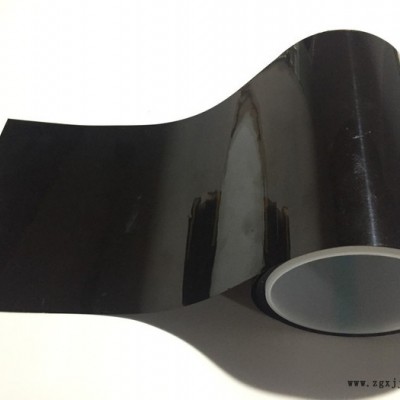

>>> The series of single-side conductive carbon films are made of nano-superconducting carbon black, carbon nanotubes and graphene, and then bonded to the substrate by a special pressing process. The composite carbon film prepared by the above process has uniform and stable surface resistance and uniformly bending-resistant material as a whole. Through the packaging process of the later customers, the composite carbon film can be acid-resistant, oil-resistant, heat-resistant, cold-resistant, flame-retardant and oxidation-resistant, and has a service life of more than 20 years. Non-conductive surface has good printing performance, can print a variety of logo patterns according to needs, to meet the personalized LOGO requirements.
應用于**、電磁屏蔽、電熱等產品。
Used in physiotherapy electrodes, electromagnetic shielding, electric heating and other products.
主要技術參數如下：
The main technical parameters are as follows:
●常規方阻General square resistance：10~100,000Ω/□
●厚度Thickness：20~400μm
●寬度Width：5~1500mm
●長度不限Unlimited length
●常規使用溫度Conventional service temperature：-20~160℃
●極端耐溫性Extreme temperature resistance：-40~220℃
